ProLink PRC2402M V1.0.18 Multiple Vulnerabilities

- (5 min read)

All vulnerabilities mentioned in this post were tested against firmware version V1.0.18, older versions might be affected as well. Affected devices should be updated to V1.0.23 to resolve the issues.

Proof-of-concept exploits for all vulnerabilities can be found here:


The admin console for the PRC2402M router consists of various CGI binaries in the /cgi-bin directory that can be accessed through HTTP POST requests.

All requests contain page form parameter that the CGI binary uses to route to a specific function within the binary. The routing is done in the main function of the CGI binary as a giant chunk of if-else conditionals.

00400db4    int32_t page_param = web_get@GOT(0x416de8, params, 0)  {"page"}
00400dfc    if (strcmp@GOT(page_param, 0x416e08) == 0)  {"sysAdm"}
004012c4        set_sys_adm(params: params)
00400e18    else if (strcmp@GOT(page_param, 0x416e10) == 0)
00401138        set_ntp(params)
00400e34    else if (strcmp@GOT(page_param, 0x416e14) == 0)  {"loaddefault"}
00401360        load_default()
00400e50    else if (strcmp@GOT(page_param, 0x416e20) == 0)  {"sysCMD"}
00401374        set_sys_cmd(params: params)
00400e6c    else if (strcmp@GOT(page_param, 0x416e28) == 0)  {"repeatLastCMD"}
00401388        set_last_cmd()
00400e88    else if (strcmp@GOT(page_param, 0x416e38) == 0)  {"wzdap"}
0040134c        set_wzdap(params: params)
00400ea4    else if (strcmp@GOT(page_param, 0x416e40) == 0)  {"wzdrepeater"}
0040139c        set_wzdrepeater(params: params)

Post-Auth Command Injections

The admin console contained 3 command injection vulnerabilities that could be accessed after authentication. Exploiting the vulnerabilities follow the general pattern of generating a reverse shell with msfvenom, calling curl with the command injection to fetch the payload onto the router, and executing the payload to obtain a reverse shell. The reverse shell has the privilege of the root user account.

Each directory on GitHub contains scripts that can be executed as follows:

Run to generate a reverse shell payload. The following parameters are configurable:

  1. LHOST
  2. LPORT

Run a HTTP server serving the generated payload:

python3 -m http.server 38888

Upload the generated payload to the router with The following parameters are configurable:


Run a netcat listener to await for a reverse shell callback:

nc -nlvp 4242

sysCMD command injection (CVE-2021-36706)

The set_sys_cmd function in the adm.cgi binary, accessible with a page parameter value of sysCMD contains a trivial command injection where the value of the command parameter is passed directly to system.

int32_t set_sys_cmd(char* params)
00401f40  char* command_param = web_get(0x4154f4, params, 0)  {"command"}
00401f5c  char cmd[0x100]
00401f5c  memset(&cmd, 0, 0x100)
00401fcc      system(&cmd)
00401fe8      sprintf(&cmd, 0x415554, command_param)  {"echo "%s" > /var/last_system_com..."}
00402000      system(&cmd)
00402030      fd = web_redirect(getenv(0x41557c))  {"HTTP_REFERER"}
00402044  return fd

ledonoff command injection (CVE-2021-36707)

The set_ledonoff function in the adm.cgi binary, accessible with a page parameter value of ledonoff contains a trivial command injection where the value of the led_cmd parameter is passed directly to do_system.

int32_t set_ledonoff(char* params)
00410ad0  char* led_cmd_param = strdup(web_get(0x416b64, params, 0))  {"led_cmd"}
00410b1c  return do_system(0x415528, led_cmd_param) __tailcall  {"%s"}

do_system is a wrapper function that essentially calls out to system.

TR069 command injection (CVE-2021-36705)

The set_TR069 function in the adm.cgi binary, accessible with a page parameter value of TR069 contains a trivial command injection where the value of the TR069_local_port parameter is passed directly to system.

int32_t set_TR069(char* params)
0040883c  char cmd[0x100]
0040883c  memset(&cmd, 0, 0x100)
00408874  char* local_enable_param = strdup(web_get(0x4160c8, params, 0))  {"TR069_local_enable"}
004088ac  char* acs_url_param = strdup(web_get(0x4160dc, params, 0))  {"TR069_acs_url"}
004088e0  char* acs_username_param = strdup(web_get(0x4160ec, params, 0))  {"TR069_acs_username"}
00408914  char* acs_password_param = strdup(web_get(0x416100, params, 0))  {"TR069_acs_password"}
00408948  char* local_port_param = strdup(web_get(0x416114, params, 0))  {"TR069_local_port"}
00408b5c  sprintf(&cmd, 0x416190, local_port_param)  {"iptables -t filter -I INPUT -p t..."}
00408b74  system(&cmd)
00408b90  sprintf(&cmd, 0x4161c8, local_port_param)  {"iptables -t filter -I INPUT -p u..."}
00408ba8  system(&cmd)
00408bf0  return do_system(0x416200)  {"easycwmpd &"}

sysinit password reset (CVE-2021-36708)

The set_sys_init function in the login.cgi binary, accessible with a page parameter value of sysinit is used during the router setup process to configure the password of the admin account.

int32_t set_sys_init(char* params)
00404328  char* newpass_param = strdup(web_get(0x407144, params, 0))  {"newpass"}
00404728  nvram_bufset(0, 0x407240, 0x40747c)  {"ntpInit"}
00404744  nvram_bufset(0, 0x407248, time_zone_param)
00404760  nvram_bufset(0, 0x406ce4, newpass_param)  {"Password"}
00404780  nvram_bufset(0, 0x406cf0, 0x406fe8)  {"UserInit"}

The function is still accessible as an unauthenticated user after the initial setup and could be used to change the password to any attacker-controlled value.

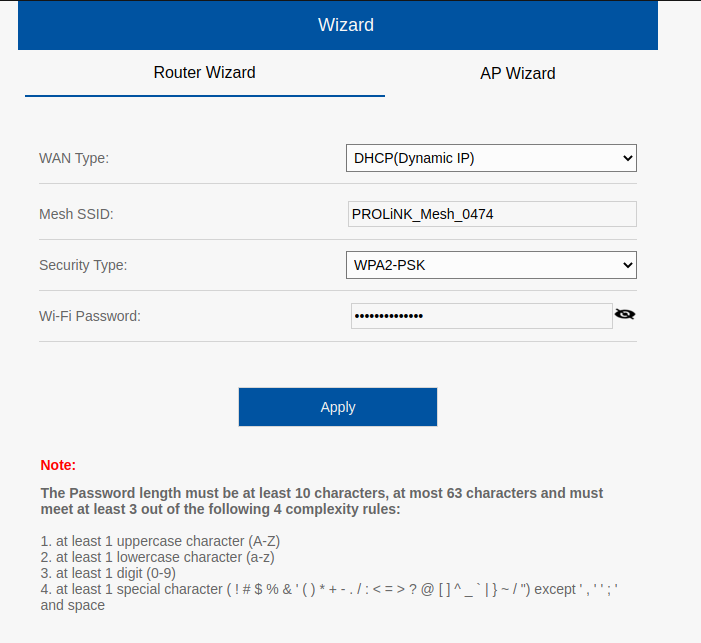

After the password is reset, the only configuration that needs to be re-done is WiFi SSID / password and WAN type in the wizard displayed after logging in. All other configurations made in the router remain untouched.

Router Config

This vulnerability could be combined with any of the command injections mentioned above to gain a root shell on the router which would go unnoticed by regular users of the router until they try and log in to the admin console again.


  • 21 May 2021 - Vulnerability reported to the vendor.
  • 10 June 2021 - Vulnerability fixed by vendor.
  • 25 June 2021 - Updated firmware published at
  • 11 July 2021 - Published write up.
  • 6 August 2021 - MITRE assigned CVE IDs
